Gas cleaning system TYPHOON COMBO

Specifications

  • Flow rate of the purified gas 1700-3500
  • Specific consumption of irrigation liquid, l/m3 2,5
  • Water circulating in the wet gas cleaning system, m3/h 7,5
  • Irrigation pressure, MPa 0,5-3
  • Hourly water amount required to compensate evaporation, m3/h up to 0,5
  • Air-pressure, kPa up to 8
  • Chimney diameter, mm 500
  • Chimney height, mm 8000
  • Maximum gas temperature at the outlet, °С +30…+150
  • Power consumption, kW 20
  • Gas cleaning factor, % up to 99


Select an equipment

№ Specifications Unit of measurement Type of incinerator
Н200R H400R H1000R
1 Flow rate of the purified gas

m3/h

 1700-3500 1700-3500 3100-6500
2 Specific consumption of irrigation liquid

l/m3

 2,5
3 Water circulating in the wet gas cleaning system

m3/h

 7,5 7,5 15
4 Irrigation pressure MPa 0,5-3
5 Hourly water amount required to compensate evaporation**

m3/h

 up to 0,5 up to 0,5 up to 1
6 Air-pressure kPa up to 8 up to 12,5 up to 16,5
7 Chimney diameter mm 500
8 Chimney height* mm 8000 8000 8000
9 Maximum gas temperature at the outlet °С +30…+150
10 Power consumption** kW 20 38,5 97,5
11 Gas cleaning factor % up to 99


Model photos

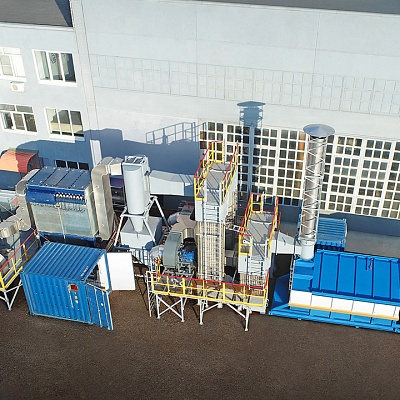

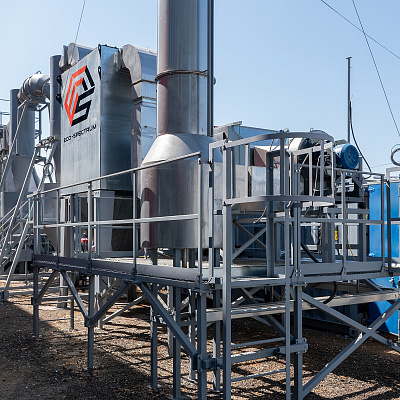

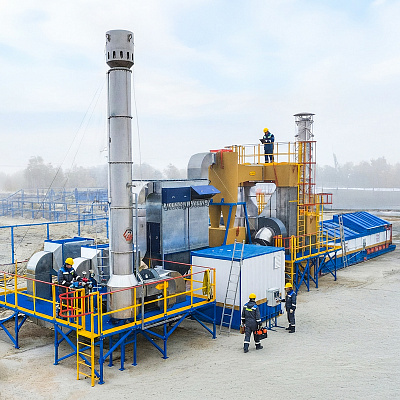

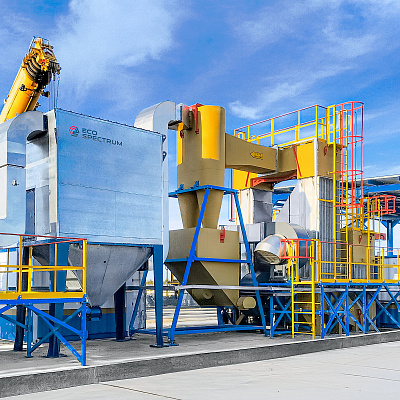

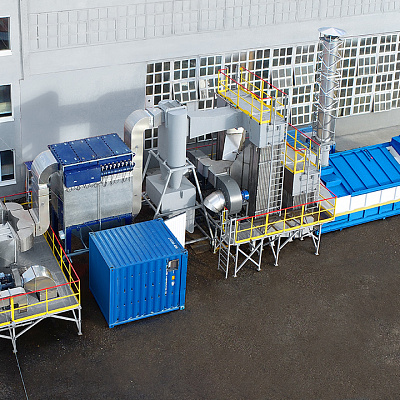

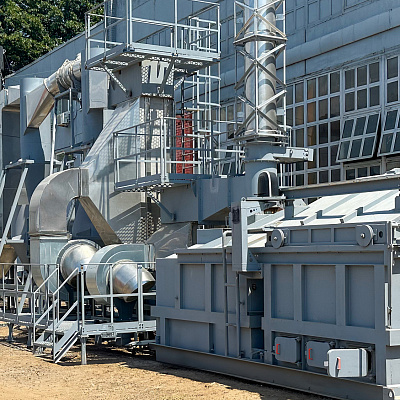

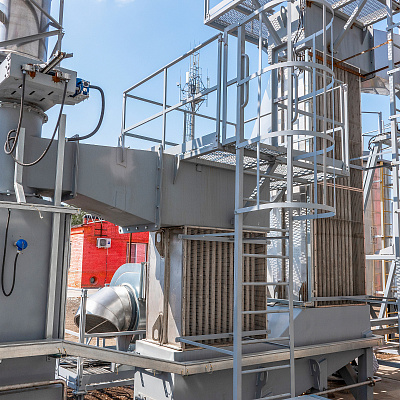

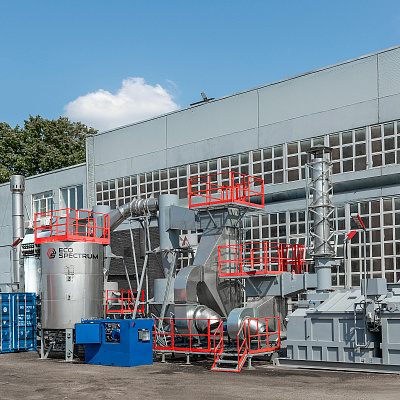

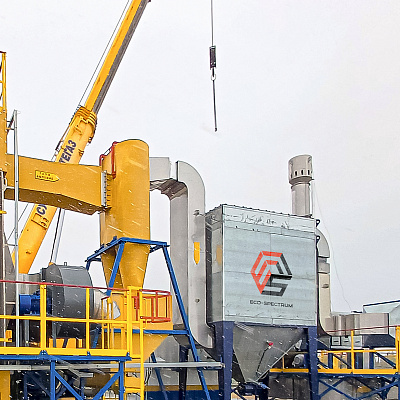

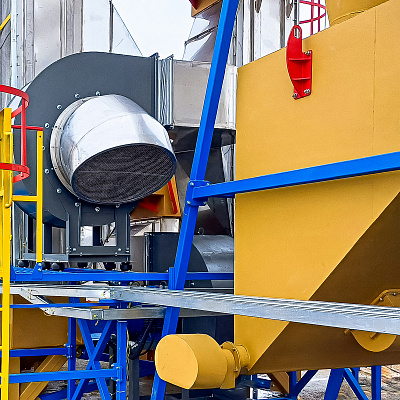

TYPHOON Gas cleaning systems
Go to gallery


The combined gas cleaning system is a combination of parts and assemblies of Wet and Dry Gas Cleaning systems into a single complex. It is used in case of exceeding the levels of maximum permissible emissions for a number of indicators of pollutants in flue gases and to achieve maximum efficiency.

Advantages of Combined Gas Cleaning system:

  • High purification efficiency for almost all type of pollutants;
  • Quenching of gases prevents the recombination of dioxins and furans;
  • Longer service life of wet scrubbers between scheduled maintenance.
