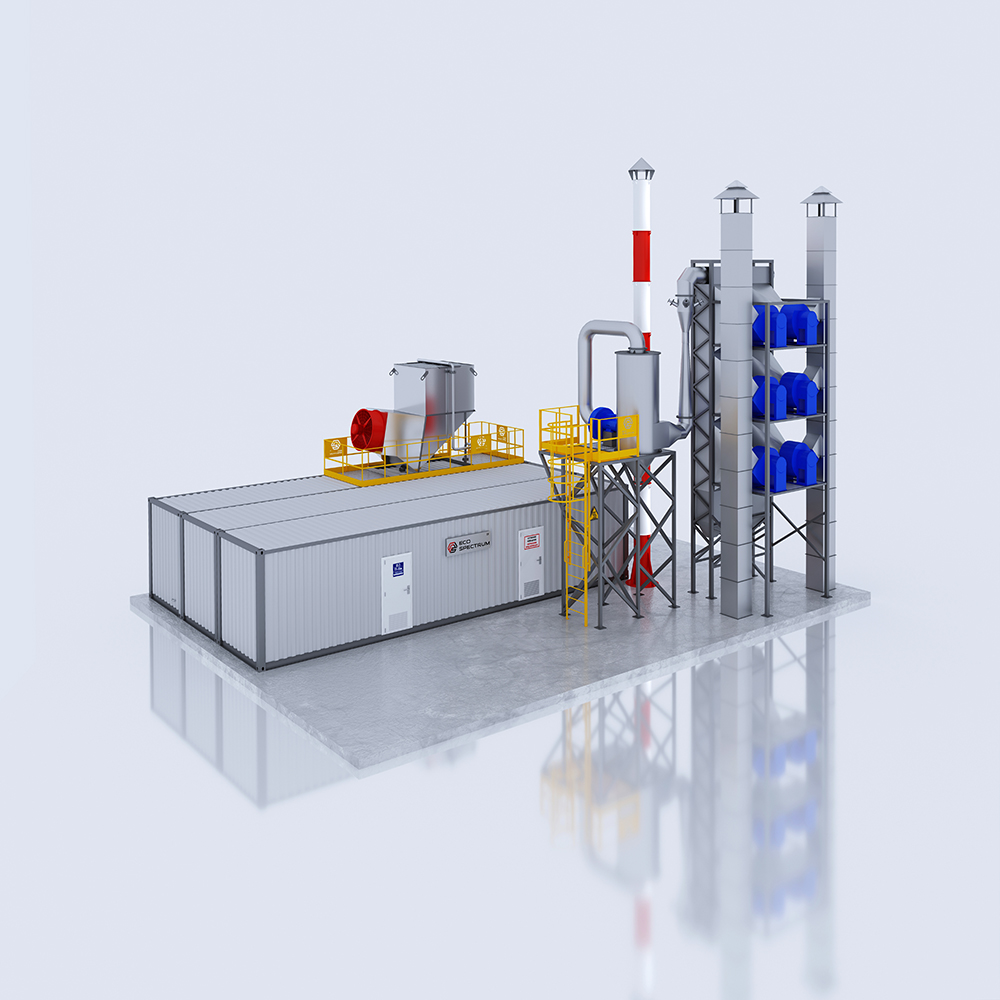

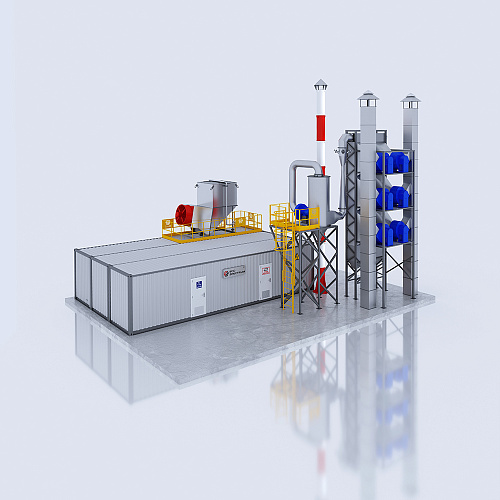

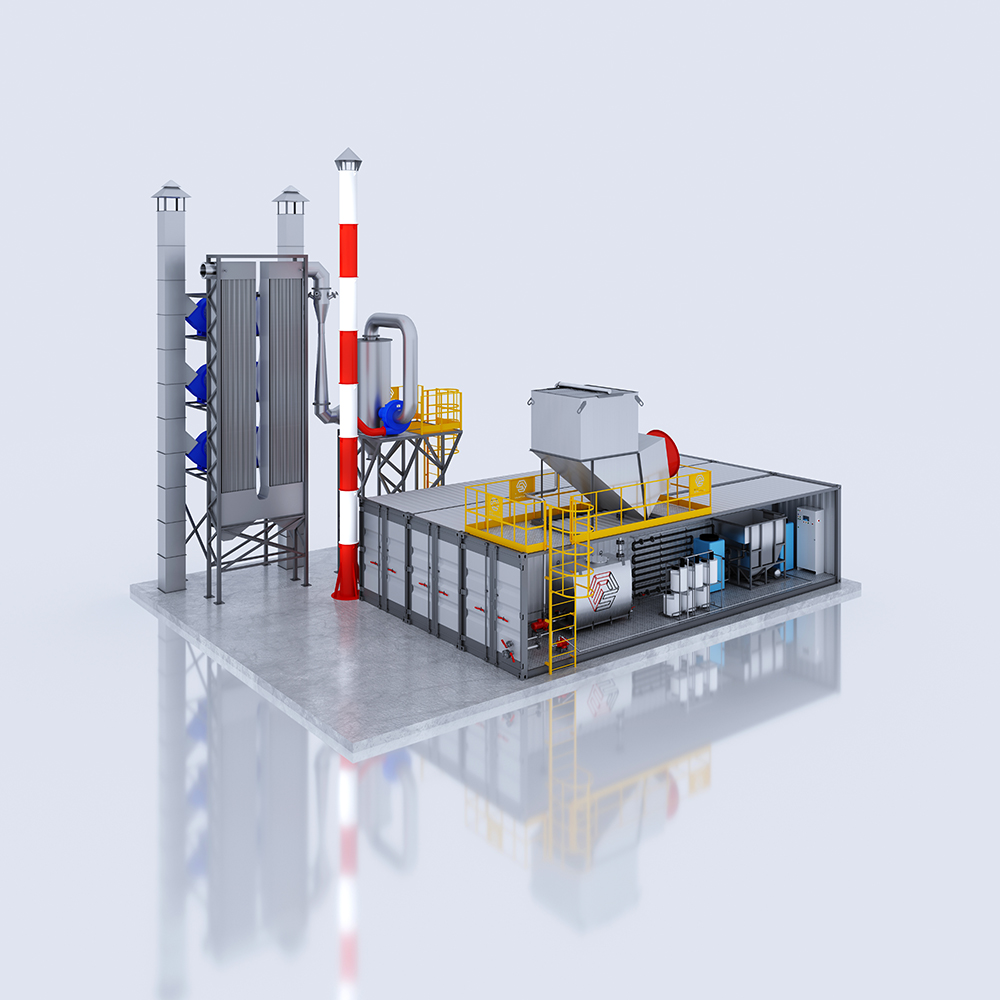

Gas cleaning system TYPHOON WET

Specifications

  • Flow rate of the purified gas 1700-3500
  • Specific consumption of irrigation liquid, l/m3 2,5
  • Water circulating in the wet gas cleaning system, m3/h 7,5
  • Irrigation pressure, MPa 0,5-3
  • Hourly water amount required to compensate evaporation, m3/h up to 0,5
  • Air-pressure, kPa up to 7,5
  • Chimney diameter, mm 500
  • Chimney height, mm 8000
  • Maximum gas temperature at the outlet, °С +30…+150
  • Power consumption, kW 18,5
  • Gas cleaning factor, % up to 99


Select an equipment

№ Specifications Unit of measurement Type of incinerator
Н200R H400R H1000R
1 Flow rate of the purified gas

m3/h

 1700-3500 1700-3500 3100-6500
2 Specific consumption of irrigation liquid

l/m3

 2,5
3 Water circulating in the wet gas cleaning system

m3/h

 7,5 7,5 15
4 Irrigation pressure MPa 0,5-3
5 Hourly water amount required to compensate evaporation

m3/h

 up to 0,5 up to 0,5 up to 1
6 Air-pressure kPa up to 7,5 up to 12 up to 16
7 Chimney diameter mm 500
8 Chimney height* mm 8000 8000 8000
9 Maximum gas temperature at the outlet °С +30…+150
10 Power consumption ** kW 18,5 37 96
11 Gas cleaning factor % up to 99

The principle of operation of the Wet Gas Cleaning system is based on the contact of a dusty gas stream with an irrigating liquid, which makes it possible to achieve purification of flue gases from various pollutants.

The choice of gas cleaning system depends on the following initial indicators:

  • Availability of water supply, wells, delivered water;
  • Composition of waste;
  • Required level of emissions of pollutants in flue gases;
  • Climatic and territorial location (size of the sanitary protection zone, ambient temperature);
  • Equipment dimensions.

Advantages of Wet Gas Cleaning system:

  • Higher cleaning efficiency in comparison with Dry gas cleaning systems;
  • Quenching of gases prevents the recombination of dioxins and furans;
  • Less waste in comparison with Dry gas cleaning systems.
