Gas cleaning system TYPHOON DRY
Specifications
- Flow rate of the purified gas up to 2000
- Air-pressure, kPa not more than, 6
- Chimney diameter, mm 500
- Chimney height, mm 8000
- Maximum gas temperature at the outlet, °С +30…+200
- Power consumption, kW 27,5
- Gas cleaning factor, % up to 99
- Dry agent injection system optional
Select an equipment
| № | Specifications | Unit of measurement | Type of incinerator | ||
| Н200R | H400R | H1000R | |||
| 1 | Flow rate of the purified gas | m3/h |
up to 2000 | up to 3500 | up to 9000 |
| 2 | Air-pressure | kPa | not more than, 6 | not more than, 6 | not more than, 6 |
| 3 | Chimney diameter | mm | 500 | ||
| 4 | Chimney height* | mm | 8000 | 8000 | 8000 |
| 5 | Maximum gas temperature at the outlet | °С | +30…+200 | ||
| 6 | Power consumption ** | kW | 27,5 | 55 | 105 |
| 7 | Gas cleaning factor | % | up to 99 | ||
| 8 | Dry agent injection system | - | optional | ||

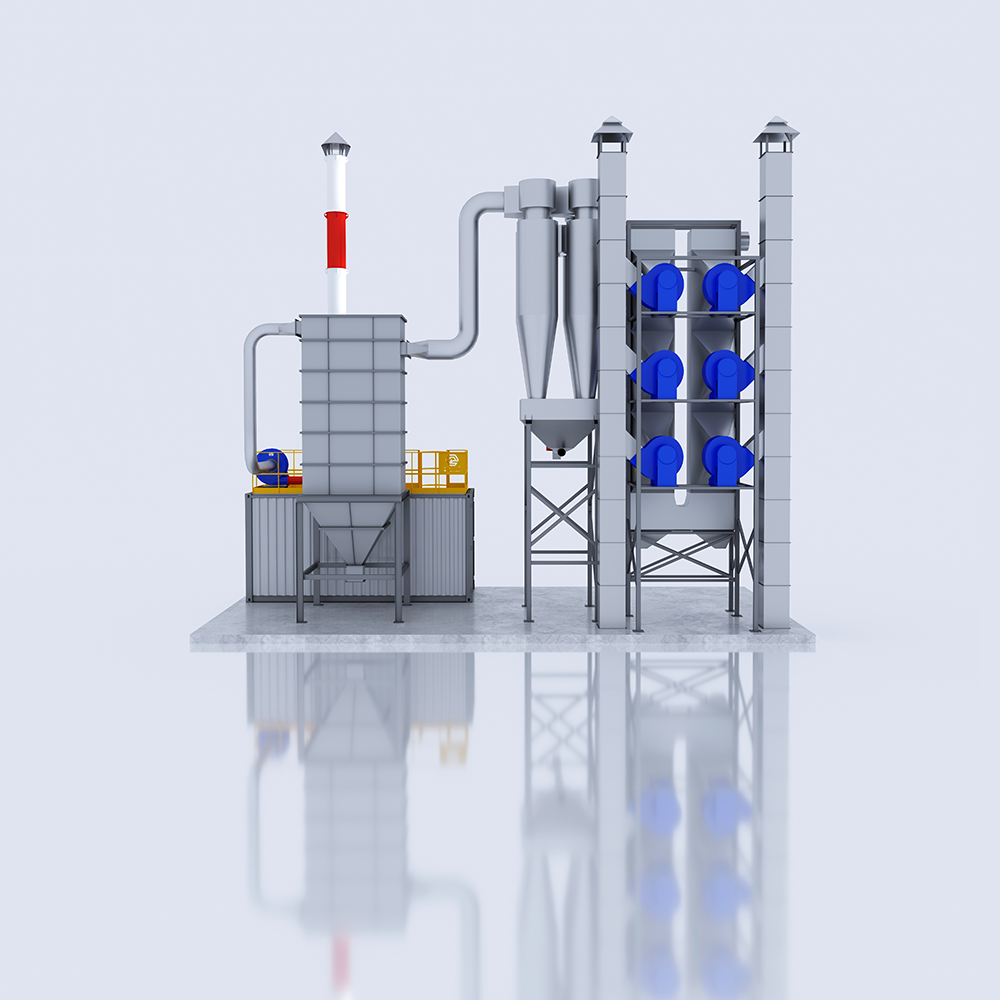

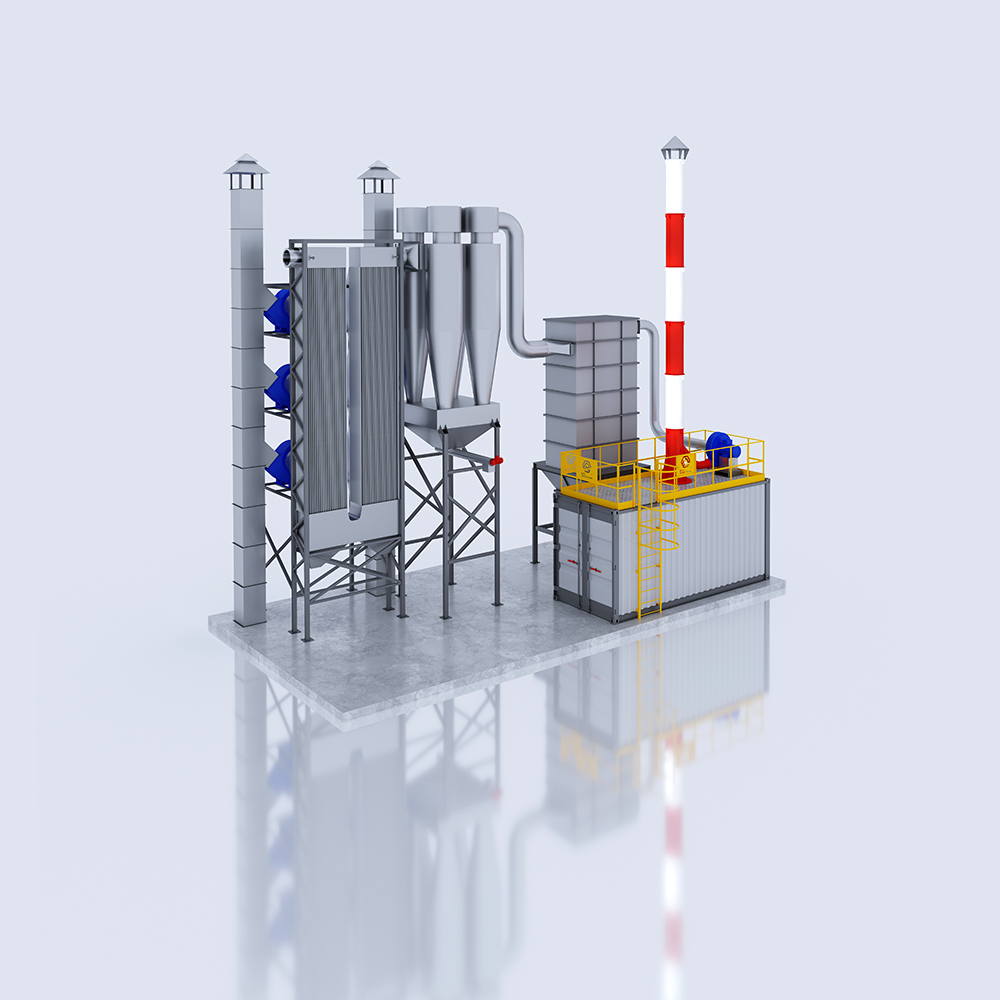

Model photos
Dry gas cleaning systems are used to clean gases from solid particles of the gas-air mixture and some gaseous contaminants. In addition to purification from solid particles, dry gas cleaning system can be used to remove gaseous contaminants: sulfur dioxide (dry reagent injection is used), heavy metals, such as mercury (carbon adsorber is used).
The choice of gas cleaning system depends on the following initial indicators:
- Availability of water supply, wells, delivered water;
- Composition of waste;
- Required level of emissions of pollutants in flue gases;
- Climatic and territorial location (size of the sanitary protection zone, ambient temperature);
- Equipment dimensions.
Advantages of Dry Gas Cleaning system:
- No water consumption;
- A water treatment system is not required (to avoid the discharge of waste water from the Wet gas cleaning system);
- Dry gas cleaning system can operate at low ambient temperatures down to -60 °С.
