Availability of the State Environmental Expertise (SEE) for 4700 types of waste.


*characteristics of equipment are typical and may change during design
  • The volume of main chamber (m3) 4.09
  • Volume of gas afterburning chamber (m3) 4.14
  • Burning rate (kg/hour) up to ~ 400

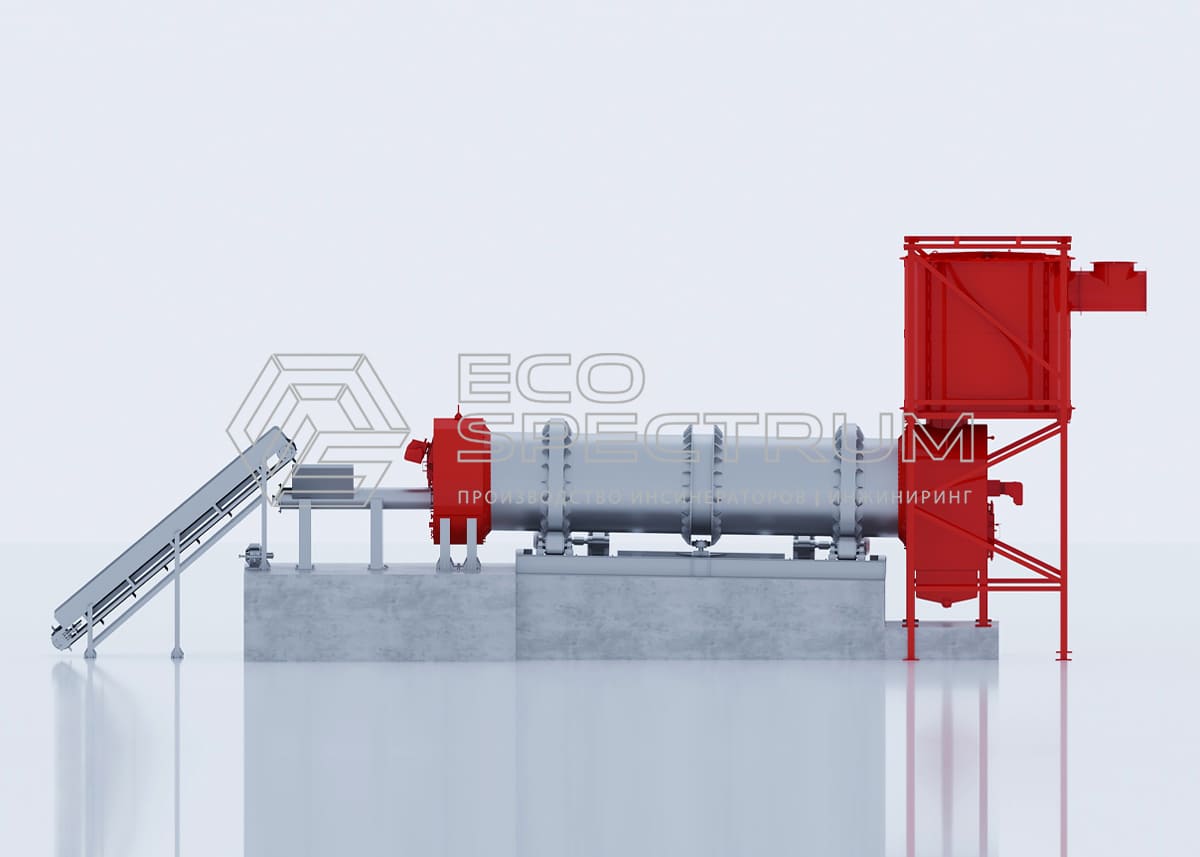

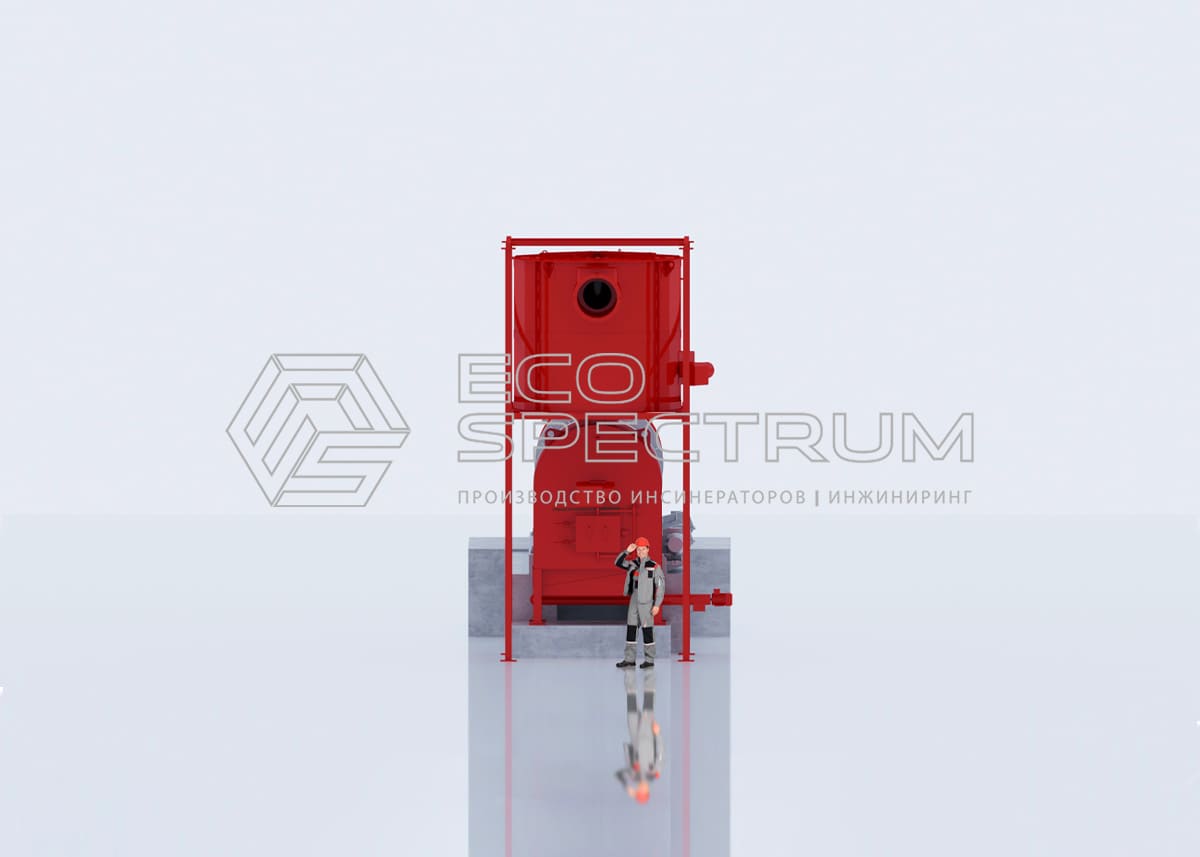

  • Dimensions (LxWxH) 8.1x2.6x7.5 m
  • Boot Window (LxW) Calculated
  • Weight (tons) 20
  • Fuel type diesel/gas/fuel oil/waste oil

Select an equipment


Disposal of production and consumption waste, biological and medical, as well as oil sludge

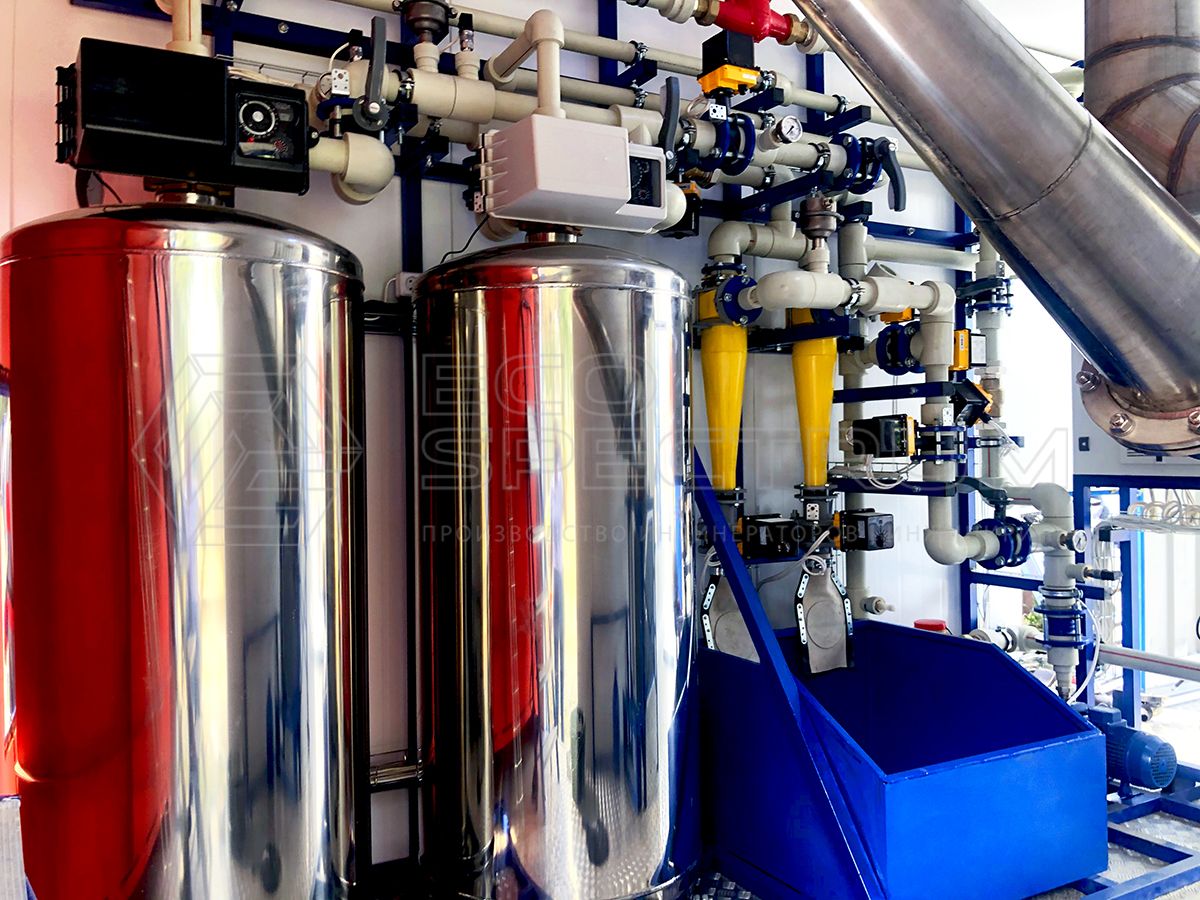

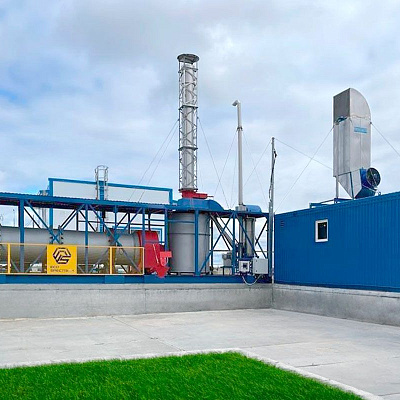

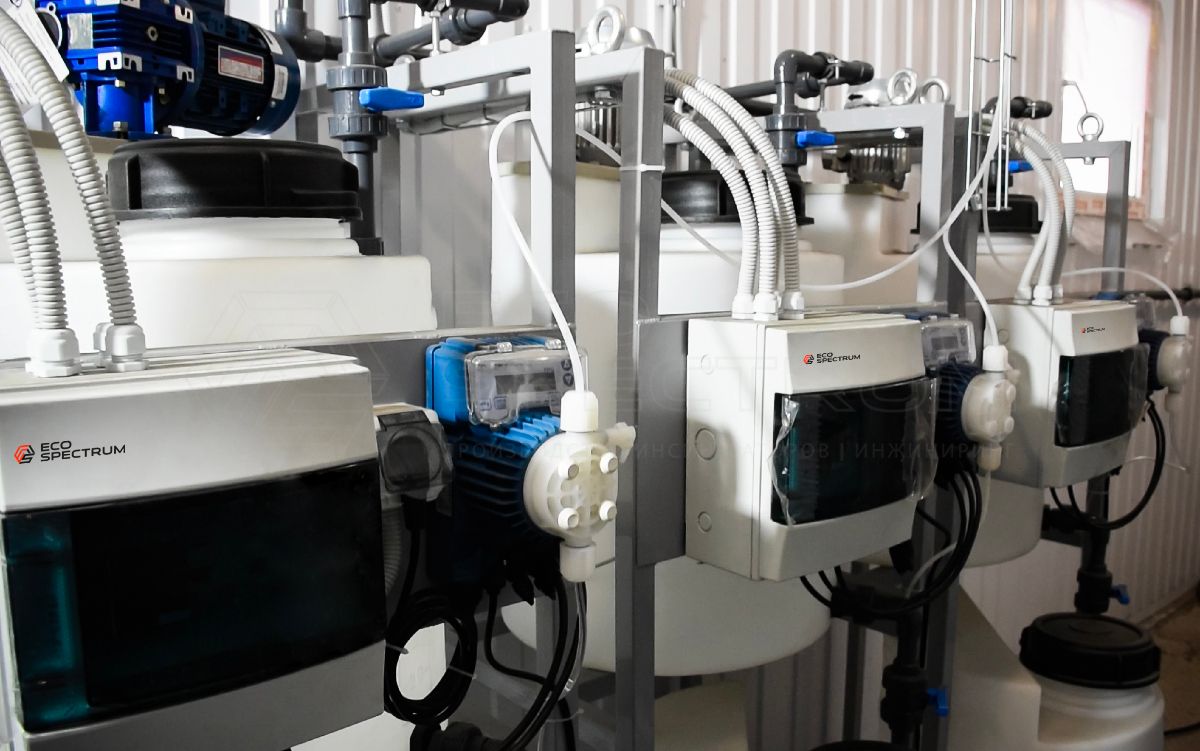

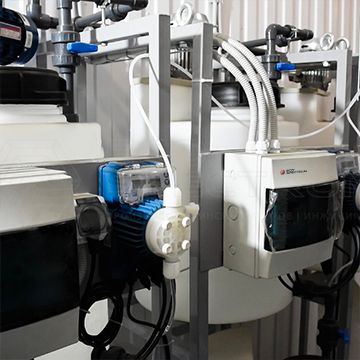

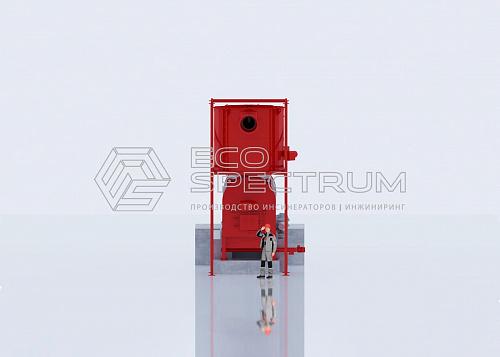

Инсинератор HURIKAN 400R с системой водоподготовки оборотного цикла

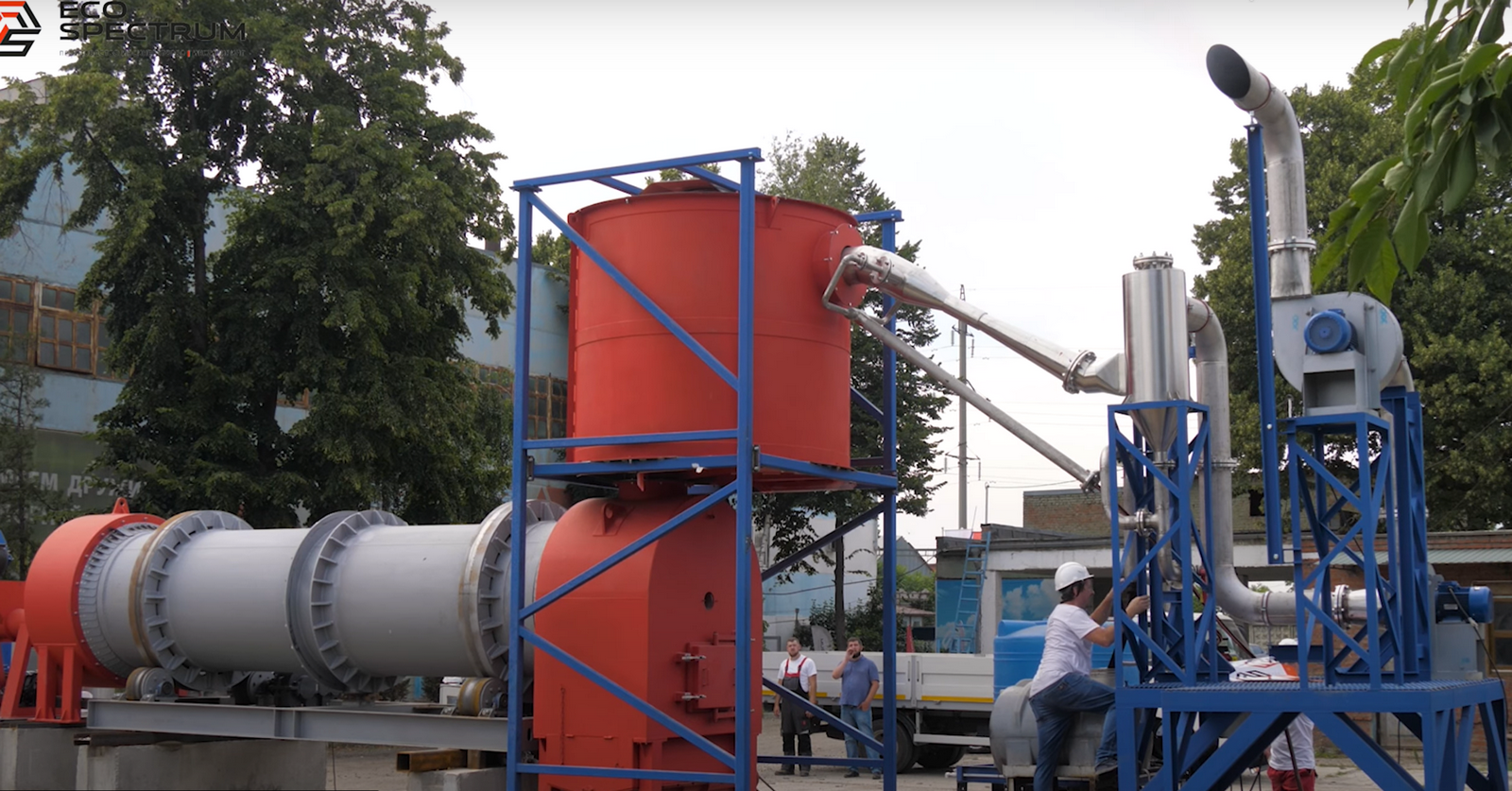

Incinerator HURIKAN 200 R - tests for thermal disposal of liquid household waste



Purpose of "HURIKAN" series incinerators:

  • neutralization of industrial and household waste;
  • neutralization of municipal solid waste; neutralization, thermal destruction and disposal of biological waste - animal waste (cattle breeding, poultry farming, slaughterhouses, veterinary medicine, etc.) and biological waste that have lost their consumer properties;
  • neutralization of medical waste of A, B, C and D categories (mercury content is not more than 0.026% of the total load mass) and medical waste that have lost their consumer properties;
  • post-disaster recovery, consequences liquidation of epidemics of animal diseases;
  • obtaining secondary material resources (SMR);
  • heat recovery during the neutralization of waste;
  • electricity generation by converting the heat received during the neutralization of waste.

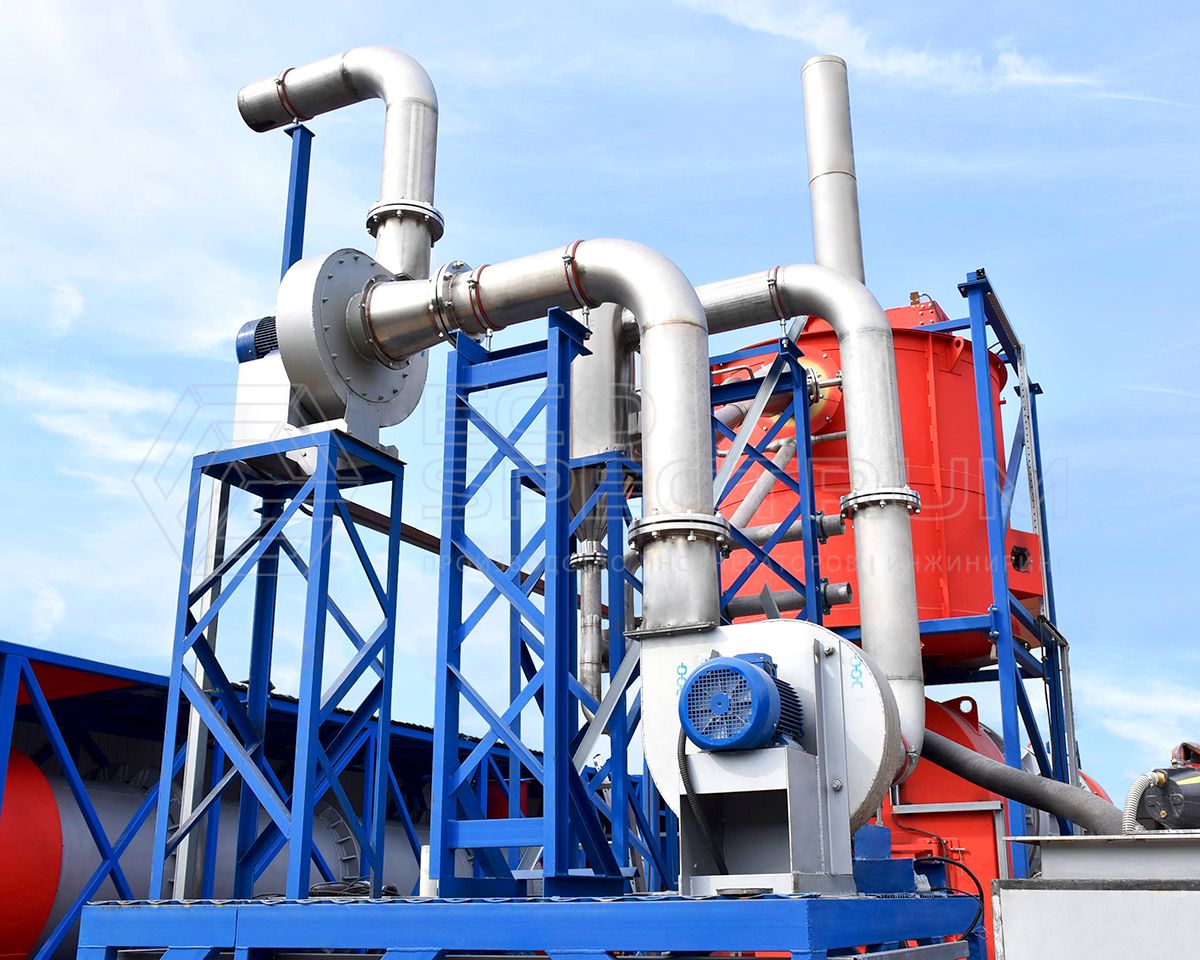

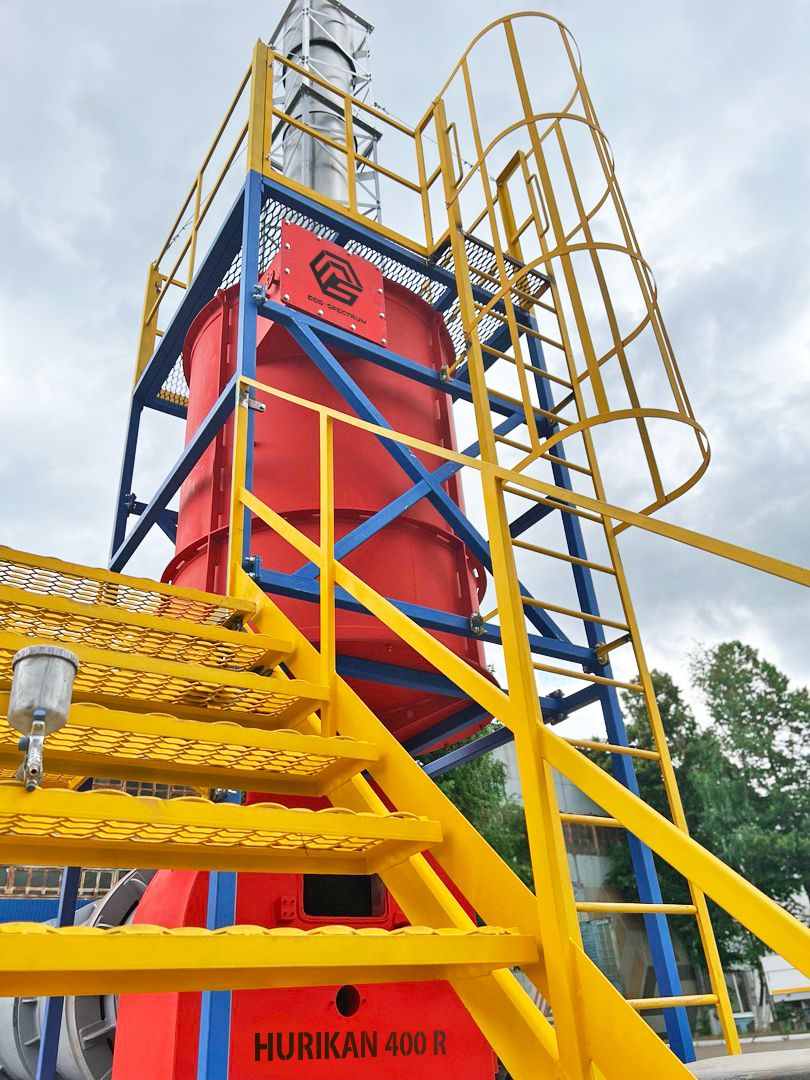

Flue gas neutralization

The secondary chamber (afterburner chamber) is structurally cylindrical in shape for optimal gas distribution in the vortex flow. Due to the volume, the gas exposure in the chamber is at least 2 seconds, which ensures the neutralization of exhaust gases at high temperature (Air emission thresholds for waste incineration facilities are equivalent to Directive 2010/75/EC of the European Parliament and of the Council of 24 November 2010 on industrial emissions. Oxygen content of more than 6% ensures the neutralization of exhaust gases).

Our specialists examine the technology of equipment operation on different wastes using simulation models in order to select the optimal solution in terms of the processes occurring in the equipment.

Optionally, the secondary chamber (afterburner chamber) can be equipped with a gas monitoring system to determine maximum allowable concentration.

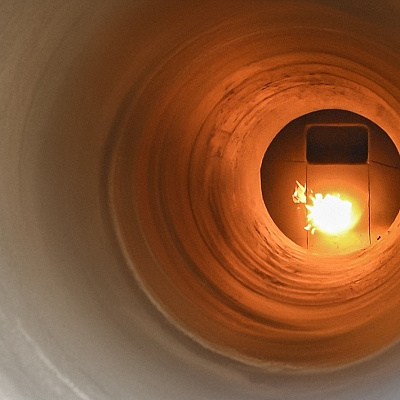

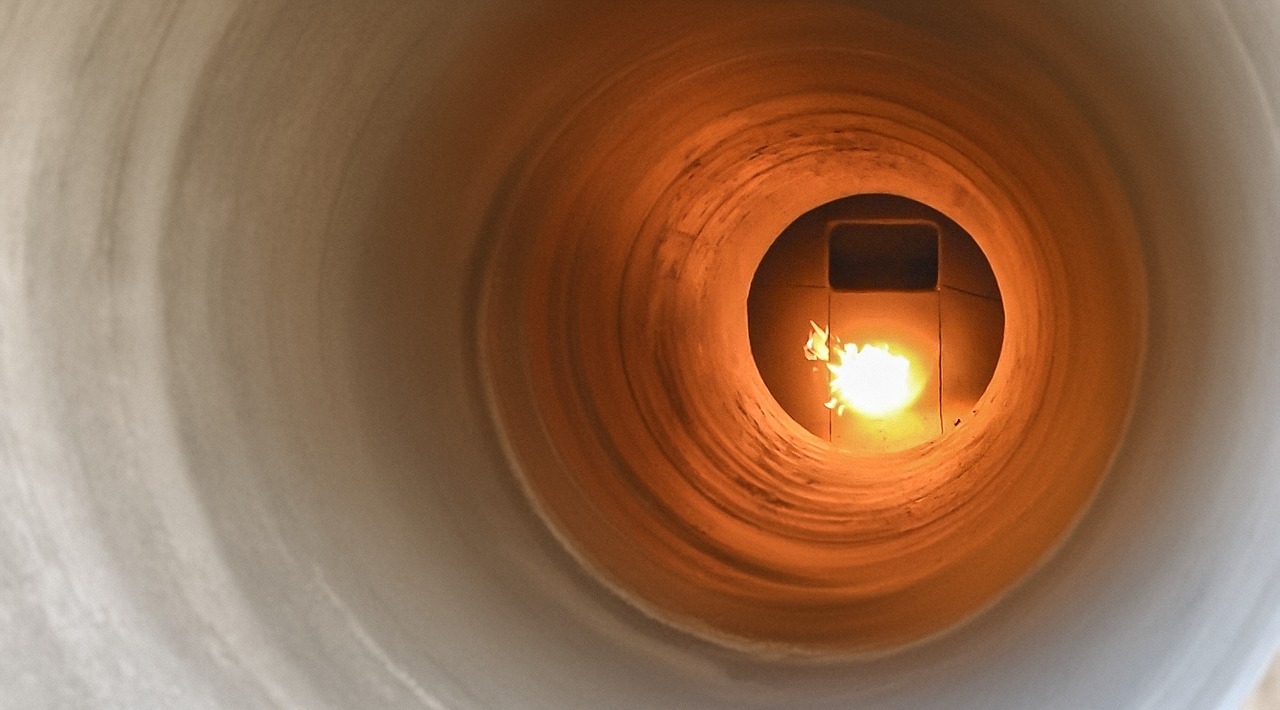

Monolithic lining

Our own developed lining technologies make it possible to acquire a high-strength quality product. Thanks to the unique combination of material and installation technology, the lining withstands enormous thermal and dynamic loads. Monolithic lining with the use of an insulating board significantly reduces heat loss, improves performance and prevents heating of structural elements. Reduction of heat loss increases fuel economy while maintaining high temperatures. The equipment meets industrial safety requirements.

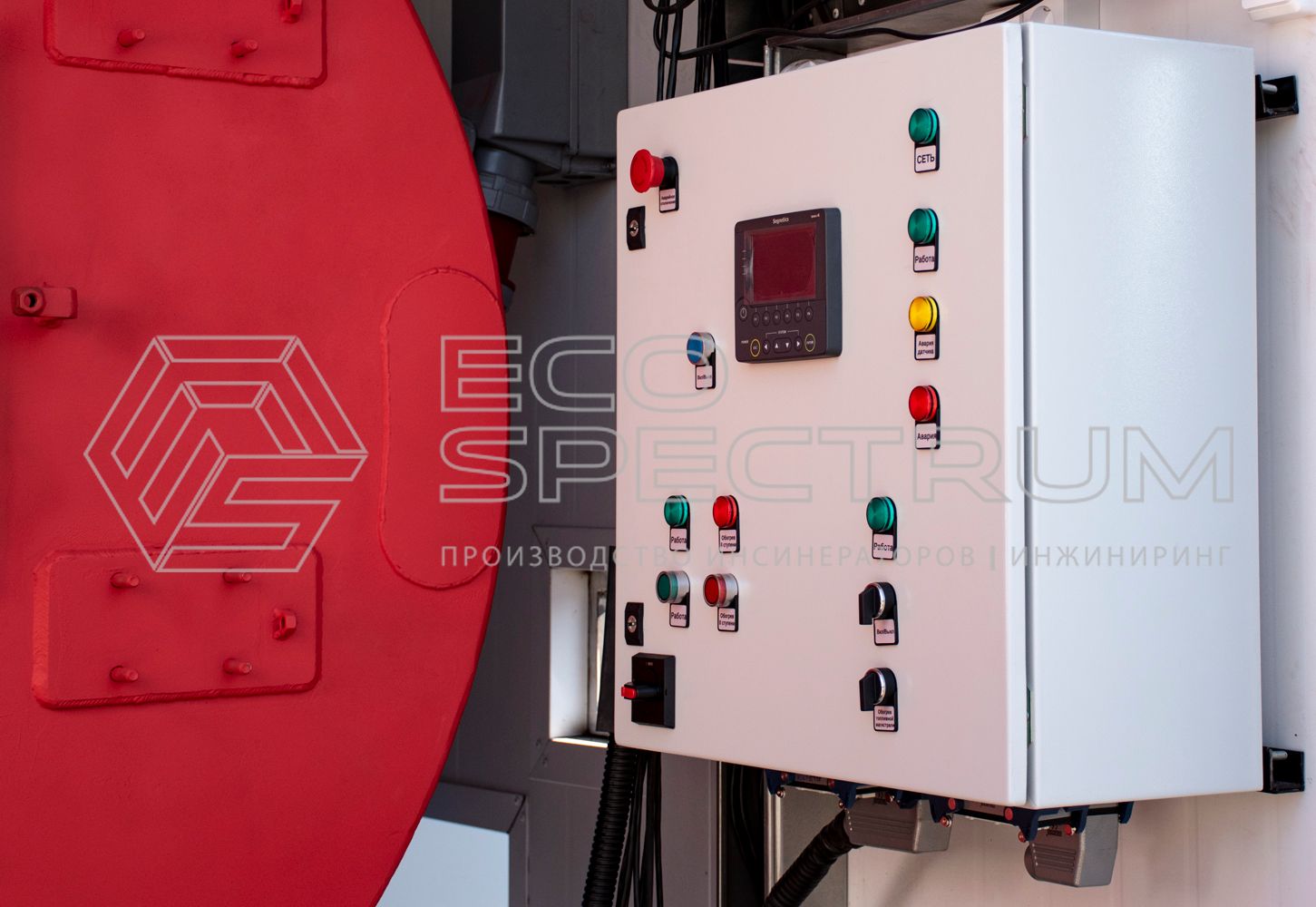

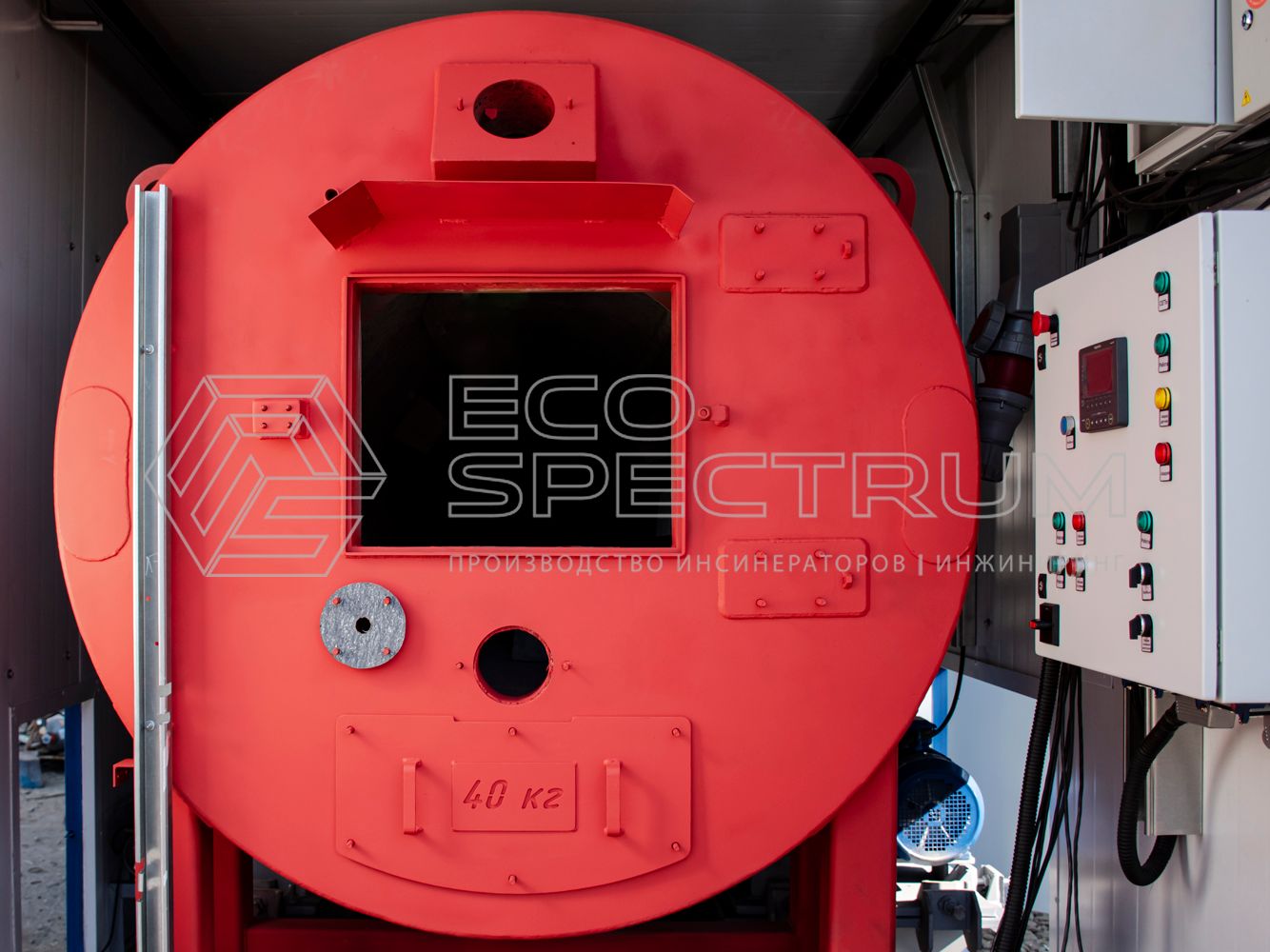

Operation processes automation

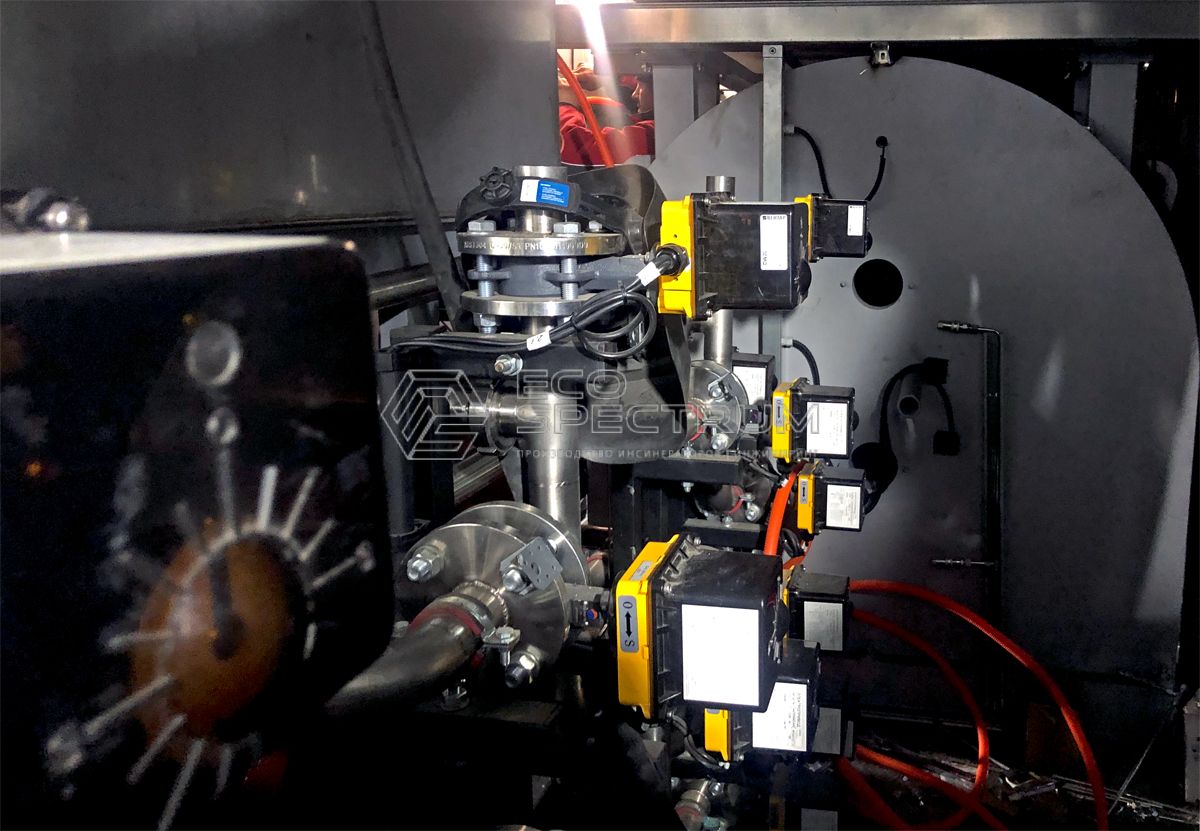

The degree of dust and moisture protection of the control panel is IP65. The burners are controlled in automatic mode (simultaneous switching on and differentiated work modes for each when needed), setting temperatures to save fuel and control the combustion process. Display of setpoints and actual temperatures. Indication of errors and accidents. Graphic touch display, built-in archiver. Indicators for monitoring the state of burners. Monitoring the condition of temperature sensors and pressure sensors. Indication of the emergency state of the installation during exceedance of operating temperatures. Automation of waste loading and opening of the lid, message about the position of the lid of the incinerator, stopping the burners when loading waste and open the lid, blocking the lid when overloading (optional). Unit operation time counter (operating hours). Display of the current fuel level in the fuel tank. Blocking the operation of the burner at a low fuel level. Auxiliary light and sound alarm, reequipment of the control panel with heating/ventilation system, depending on the climatic conditions of the region. Remote operator control panel with multi-touch color LCD display for remote control. Application of remote access technology to the controller: control, viewing, changing data on the PLC remotely from the operator's PC.
