EcoSort Mobile 70

Specifications

  • Estimated performance up to 8 tons of MSW per hour
  • Number of sorting posts 8 pcs
  • Power consumption of the sorting line up to 20 kW
  • The execution is mobile on the chassis
  • Sorting technology manual
  • Separation of the fine fraction automatic
  • Regulation of the supply of MSW to the sorting line automatic
  • Number of manual sorting posts 8
  • Climate control cabin yes
  • Separation of ferrous metal automatic


Select an equipment

The MSK -70 mobile sorting complex is designed for autonomous operational sorting of municipal solid waste (MSW) at:

  • regular MSW landfills;
  • unauthorized landfills;
  • in places where the construction of stationary MSW sorting lines is impossible or impractical.

Technical description

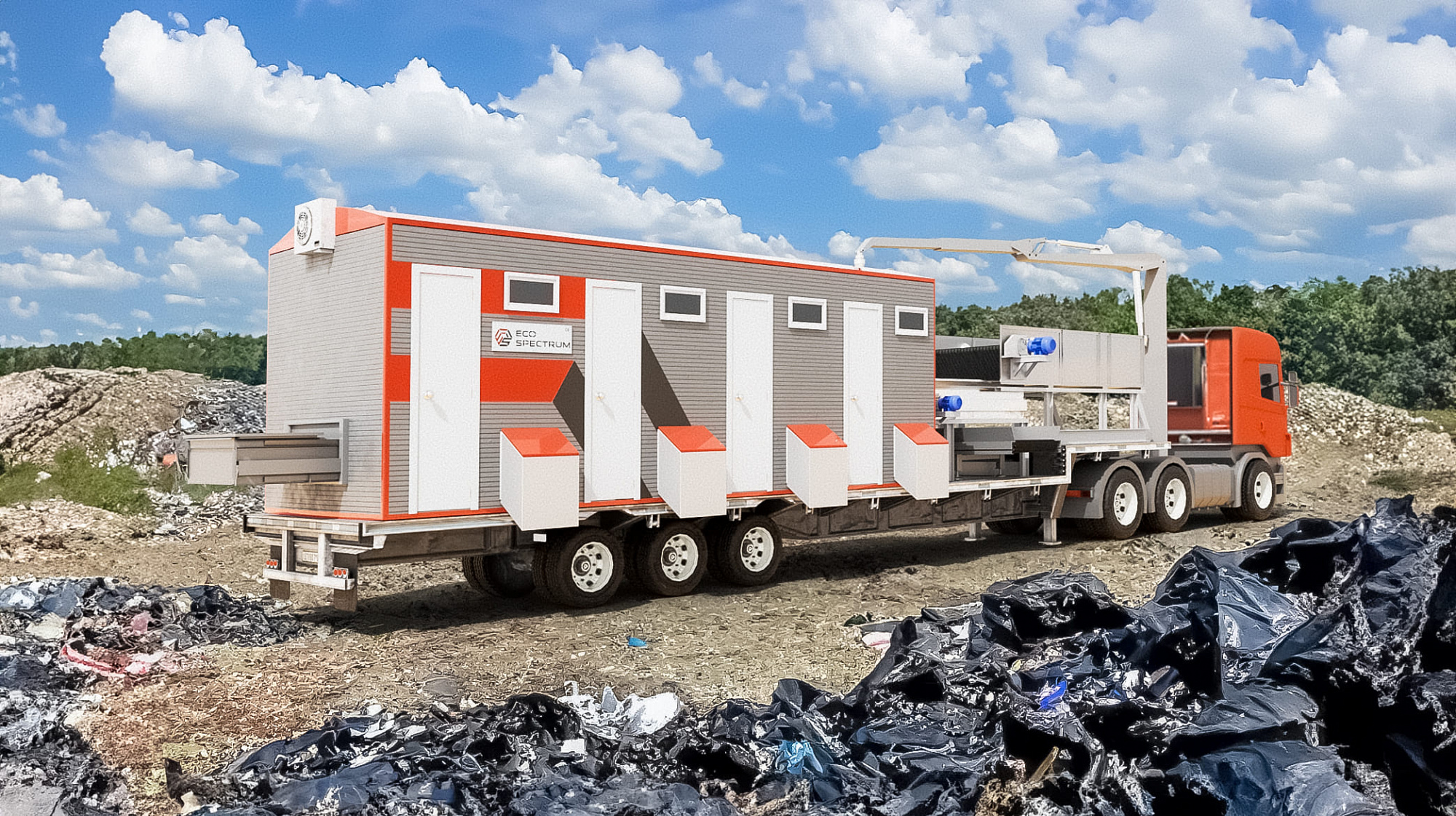

The standard equipment of the MSK-70 is based on a single semi-trailer, which houses equipment for MSW sorting.

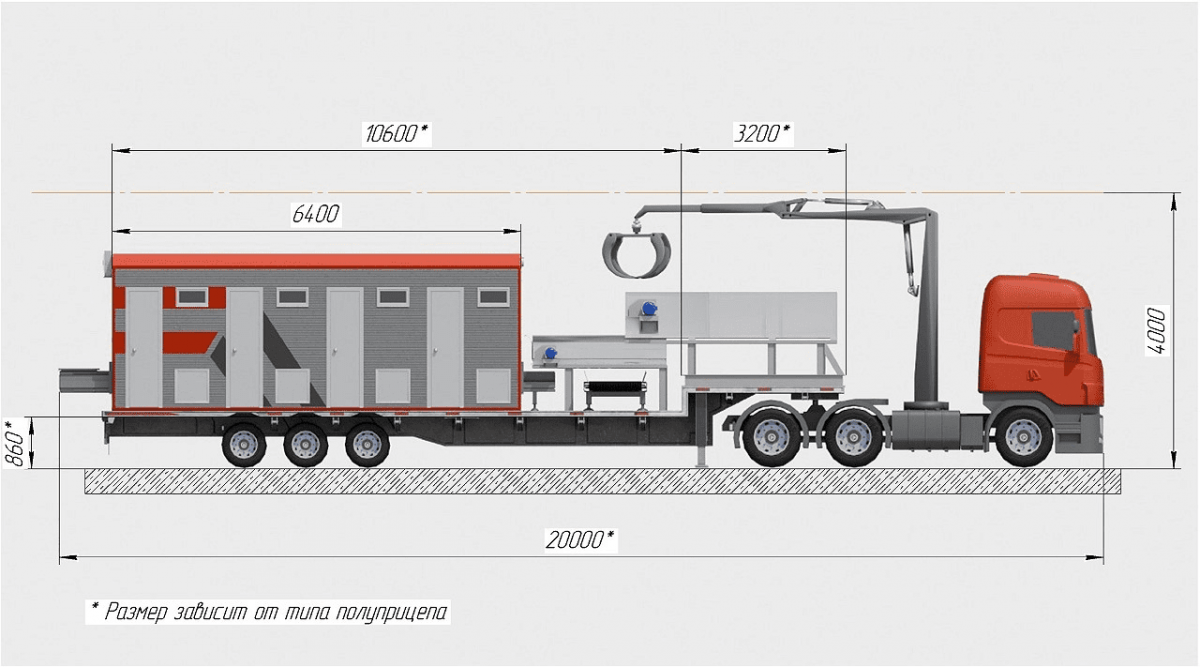

The maximum configuration of the MSK-70 is based on two semi-trailers for tractor units. A sorting module is placed on the first semi-trailer (see Fig. 1), and special equipment and additional equipment are placed on the second (auxiliary) semi-trailer (see Fig. 2). The sorting and auxiliary modules are transported by standard tractor trucks, one of which houses a hydraulic manipulator.

The main technical characteristics of the MSC -70

   1. The estimated productivity is up to 8 tons of MSW per hour.

2. The number of sorting posts is 8 pcs.;

3. The power consumption of the sorting line is up to 20 kW.

4. The overall dimensions in the transport position correspond to the current regulations of the Russian Federation for road trains.

The main technical features of the MSK - 70:



Mobile version: on the chassis

Sorting technology: manual

Fine fraction separation: automatic control of MSW supply to the sorting line: automatic Number of manual sorting posts :8

Climate cabin: yes

Separation of ferrous metal: automatic



The standard equipment of the MSK-70 is based on a single semi-trailer, which houses equipment for sorting MSW. The maximum configuration of the MSK-70 is based on two semi-trailers for tractor units. The sorting module is located on the first semi-trailer, and special equipment and additional equipment are located on the second (auxiliary) semi-trailer. The sorting and auxiliary modules are transported by standard tractor trucks, one of which houses a hydraulic manipulator.

Optional (additional equipment):

1. Disinfection of garbage and premises

2. Recycling press (vertical and horizontal of any capacity)

3. Cremators and incinerators for waste disposal with a residue of no more than 5%.

4. Shredders and crushers for CSW and MSW 5. Workplace heating and trailer heating, additional insulation.

6. Ventilation/air conditioning system

7. Perimeter lighting

8. Video surveillance

9. Automatic accounting system

10. Car scales

11. Radiation sensors

12. Car wheel washes

13. Climatic design for the conditions of the Far north

14. Diesel generator set *The equipment set can be increased at the request of the Customer.
