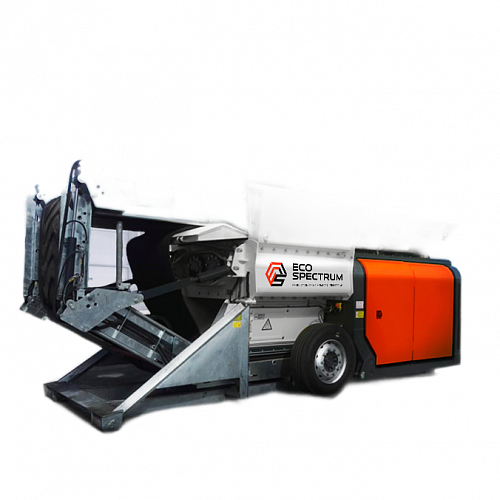

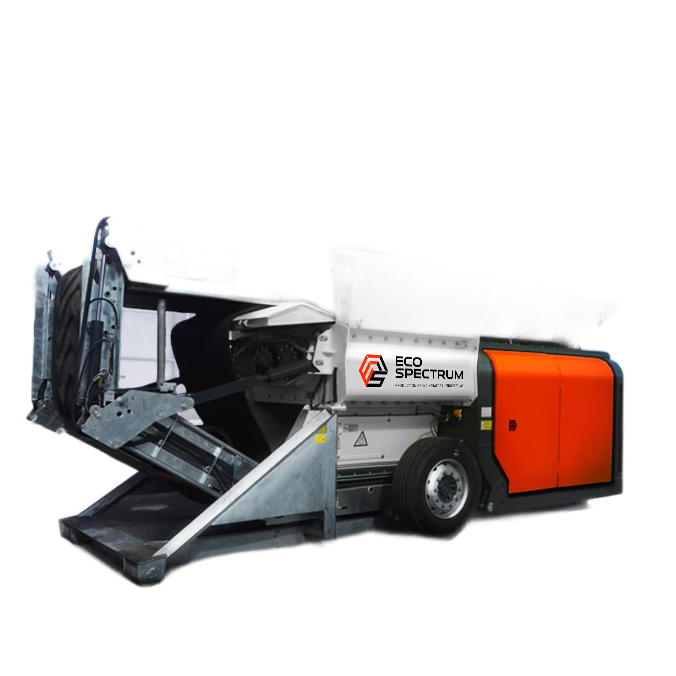

Primary shredder EcoPrimeShred 1.5

Specifications

  • Productivity, t/h up to 60
  • Type of drive diesel
  • Drive power, kW 294
  • Hopper volume, m3 9.0
  • Equipment weight, t 17.5


Select an equipment

Parameter

Units of measurement

Value

Performance

t/h

up to 60

Driven>

-

- Scania DC 9 diesel engine with a power of 294 kW, a torque of 260 Nm

Width of the unloading conveyor beltn>

mm

1200

Bin volumen>

m3

9

Rotor with kniveses

-

The rotation speed is 8-34 rpm;

Shaft length – 1750 mm

Shaft diameter – 650 mm

Magnetic separator (optional)

-

Length – 1350 mm;

Width – 650 mm;

Depth – 280 mm

Equipment weight

tons

17,5n>








Drive:

  • Scania DC 9 diesel engine: 294 kW
  • additional noise protection:up to 86 dB
  • hydraulic drive with automatic adjustment of two-section pump and hydraulic motors
  • reinforced drive with increased torque for heavy operation: 260.000 Nm

Control panel:

  • with a modern multifunctional display
  • equipped with a CAN/Bus system, reading, monitoring, analysis of the shredder operation parameters
  • touchscreen control
  • control, management, adjustment of all system operation parameters
  • all menus, commands, information on the screen are completely in RUSSIAN

Control cabinet:

  • equipped with all necessary protection systems
  • mounted on the machine body
  • integrated GPS/ FMS system

Rotors with knives:

  • special knives for crushing heavy materials, versions for solid waste, wood, metal, etc.
  • The rotation speed is adjustable from 8 to 34 rpm
  • shaft length 1.750mm
  • shaft diameter 650 mm
  • automatic reverse

Unloading conveyor:

  • Robust construction with a band width of 1.200 mm
  • the height of the reset is adjusted using the remote control
  • with reinforced drive
  • fully galvanized, not subject to corrosion
  • high-strength reinforced tape

Loading funnel:

  • large volume of 9 m3
  • two tilting loading bins for optimal feed of raw materials
  • the process of unloading bins can be started from the remote control

Remote control:

  • Remote control system with 10 channels, with the function of emergency stop of the shredder
