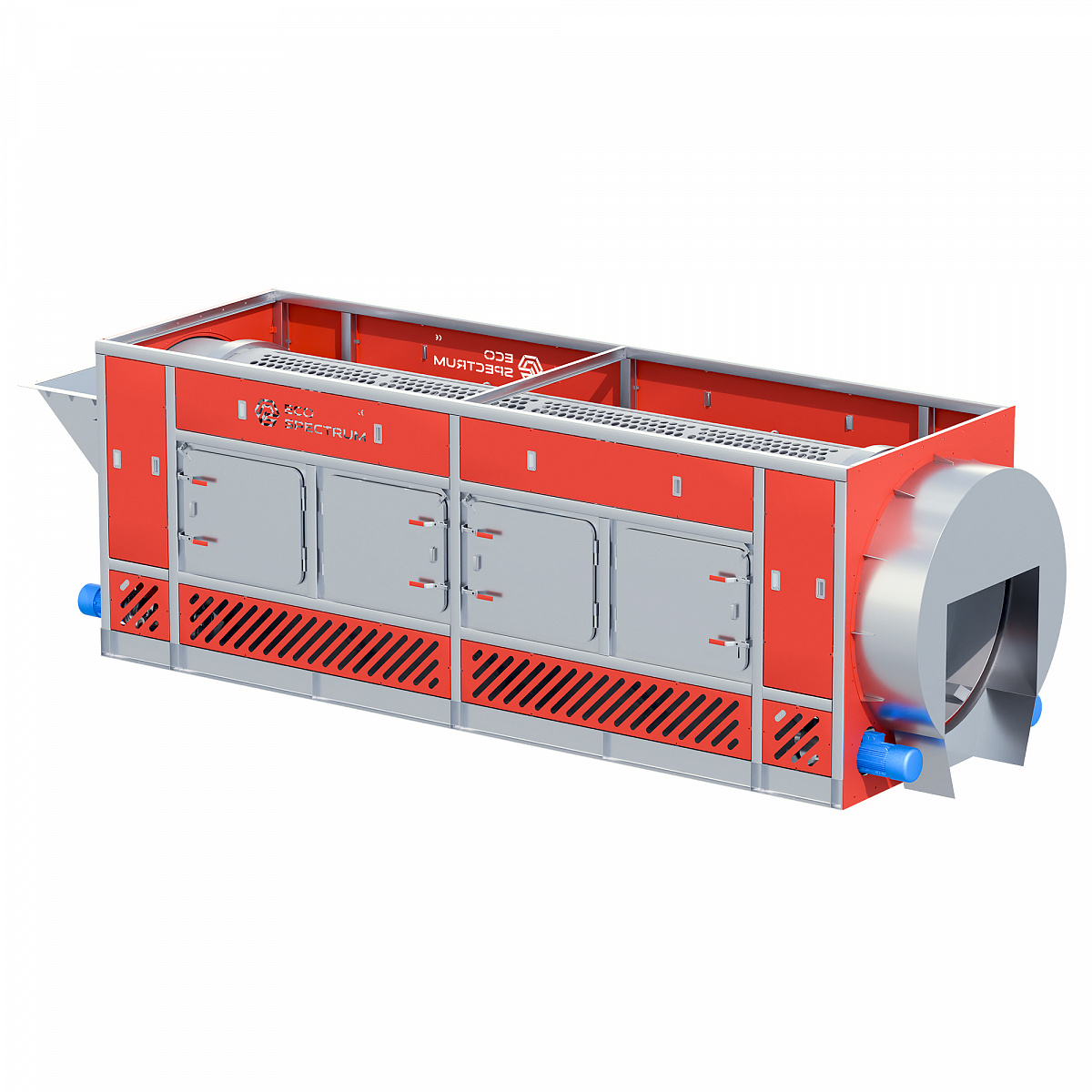

Drum Rumble EcoTrommel'8 (300)

Specifications

  • Productivity, t/h 20-30
  • The length of the rotating drum, mm 7300
  • Diameter of the rotating drum, mm 2100
  • The total length of the screen, mm 9100
  • The diameter of the cell, mm 300
  • Drive power, kW 22


Select an equipment

Advantages of the drum type screenECOSPECTRUM Skyscraper'8

1.Maintenance.

One of the advantages of the drum separator is the easy maintenance of the main components, namely:

  • The drum;

Maintenance of the drum consists in periodic cleaning of its working (perforated) surface, as well as monitoring the condition of the support bandage. Maintenance is carried out through large viewing windows with high-strength locks. The locks are located on the outside, which ensures reliable operation and protects against jamming.

  • Drive elements;

The screen rotation drive consists of two gear motors of 11 kW each. The maintenance of the drive elements consists in:

- monitoring the condition of bearings;

- control of the drive (according to the accompanying documentation);

- monitoring the condition of the support rollers (skating tracks).

The drive elements are installed in an easily accessible place. If necessary, the drive is dismantled in a short period of time.

A drive with additional cooling is installed to protect against overheating and disconnections.

  • Idle and side support rollers.

Maintenance of idle and side support rollers consists in:

- monitoring the condition of bearings;

- monitoring the condition of the support rollers (skating tracks).

  • Elements of loading and unloading of material

Quick installation/disassembly of material loading/unloading elements allows you to eliminate solid waste jam.

  • Lubrication of bearing assemblies.

The places for lubrication of bearing assemblies are placed in a convenient and safe place for syringing.

2. Weight.

One of the main competitive advantages is its mass, which is approximately 10 tons.

3. Steel wheels.

To increase the service life, the support wheels are made of steel.

4. The speed of installation.

The drum screen can be transported in one euroframe with minimal dismantling of its components. This ensures the fastest possible commissioning of the screen.

5. Optional offers:

  • Cleaning brush.

  • Color according to RAL in agreement with the Customer.

  • Centralized lubrication

  • Production of a drum made of Hardox 450 steel

The main technical characteristics of the drum type screen
