EcoSort Mobile

Specifications

  • Estimated performance up to 8 tons of MSW per hour
  • Number of sorting posts 8 pcs
  • Power consumption of the sorting line up to 20 kW
  • The execution is mobile on the chassis
  • Sorting technology manual
  • Separation of the fine fraction automatic
  • Regulation of the supply of MSW to the sorting line automatic
  • Number of manual sorting posts 8
  • Climate control cabin yes
  • Separation of ferrous metal automatic


Select an equipment

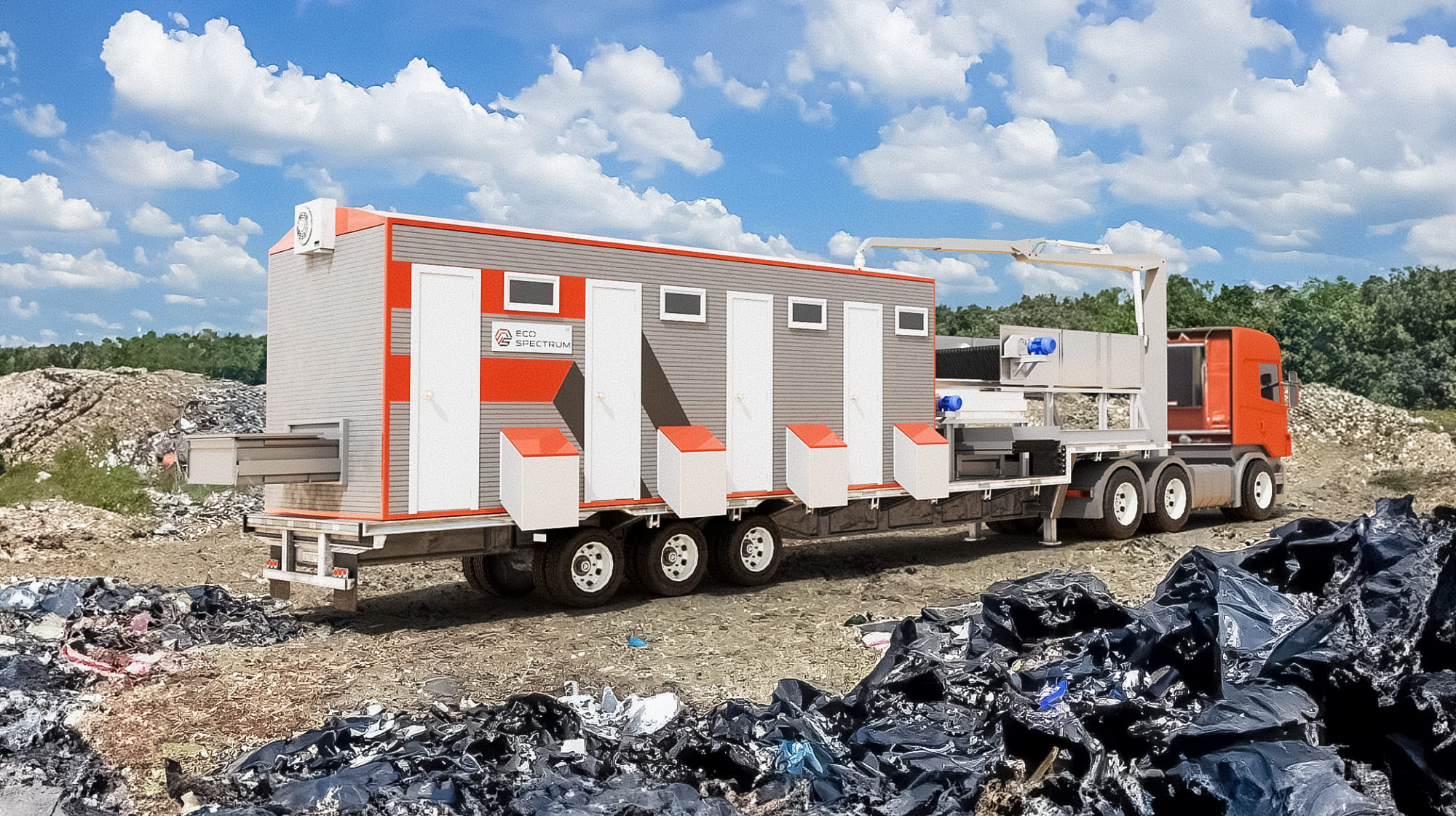

The MSK -70 mobile sorting complex is designed for autonomous operational sorting of municipal solid waste (MSW) at:

  • regular landfills of MSW;
  • unauthorized landfills;
  • in places where the construction of stationary MSW sorting lines is impossible or impractical.

The standard equipment of the MSK-70 is formed on the basis of one semi-trailer, on which the equipment for MSW cultivators is located.

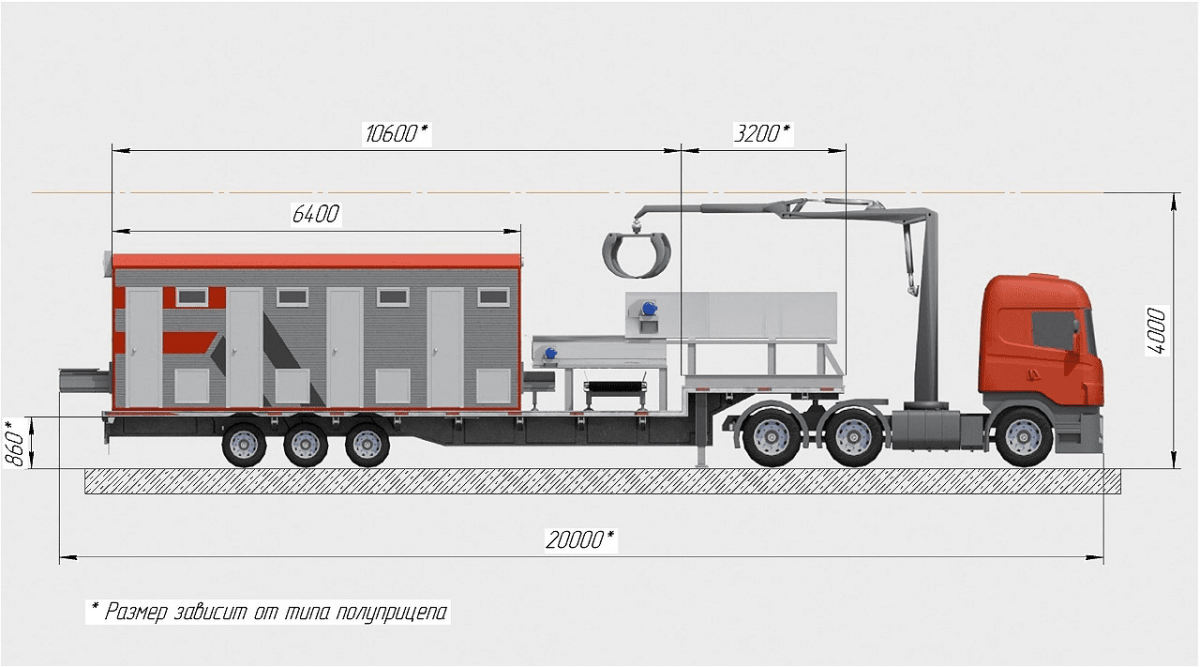

MSK_1 (1).png



The maximum configuration of the MSK-70 is formed on the basis of two semi-trailers for truck tractors. The sorting module is placed on the first semi-trailer (see Fig. 1), on the second (auxiliary) (see Fig. 2) - special equipment and additional equipment. The sorting and auxiliary modules are transported by standard truck tractors, one of which houses a hydraulic manipulator.

The equipment set can be increased at the request of the Customer.
